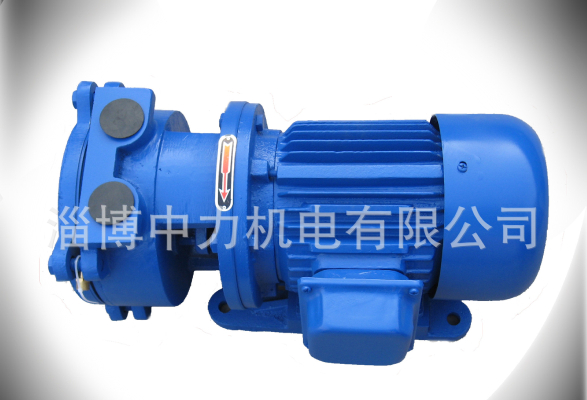

SK direct coupling water ring vacuum pump

SK series water ring vacuum pumps and compressors are used to pump or compress air and other non corrosive, insoluble in water, does not contain solid particles of gas, so as to form a vacuum and pressure in a closed container. A small amount of liquid is allowed to be mixed with the intake air.

SK water ring vacuum pumps and compressors are widely used in machinery, petrochemical, pharmaceutical, food, sugar and electronic industry. Because in the work process, the gas compression process is isothermal, so in the compression and suction of explosive gas, it is not easy to risk, so its application is more extensive.

SK direct water ring vacuum pump is the cantilever structure, the impeller is eccentrically arranged in the pump body, so when the impeller rotates, the water from the role of centrifugal force, forming a rotating water ring in the wall of the pump, water ring and the upper wheel tangent, rotate along the direction of the arrow in the process before the half turn in the water ring the surface gradually and round away, so in the space formed between the impeller blades and gradually expanded, so that from the air inlet gas, in the process of the second turn, water ring and hub surface gradually close, volume of space between the leaves gradually decreased, the leaf gas is compressed and discharged.

So, each rotation of the impeller one week, the space between the blades is changed once, each of the blades of the water between the piston reciprocating once, SK direct coupling water ring vacuum pump on the continuous suction gas.

Because in the work, the water will heat, at the same time a part of water and gas in a row, so the pump in the work, must continue to supply cold water, in order to cool and add the water consumption of the pump.

When the gas pump is in the exhaust gas, the exhaust end can be connected with a water tank, exhaust and bring out a portion of the water into the water tank, gas tank is exhausted from the exhaust pipe, and the water fell to the bottom of the tank back to the pump in use through the return pipe. If the water cycle time is long, the water will heat, then from the water supply department of the water tank to supply a certain energy of cold water.
